Отрезной станок Qcut 400 A

Precision cross feed

The Z-axis is integrated in the table. This allows keeping the cutting height at the same level. The automatic cross feed with serial cutting function produces precise parallel cuts.

Safety

Integrated safety protection only allows the automatic doors to be opened when the cutting wheel has stopped rotating.

Laser alignment

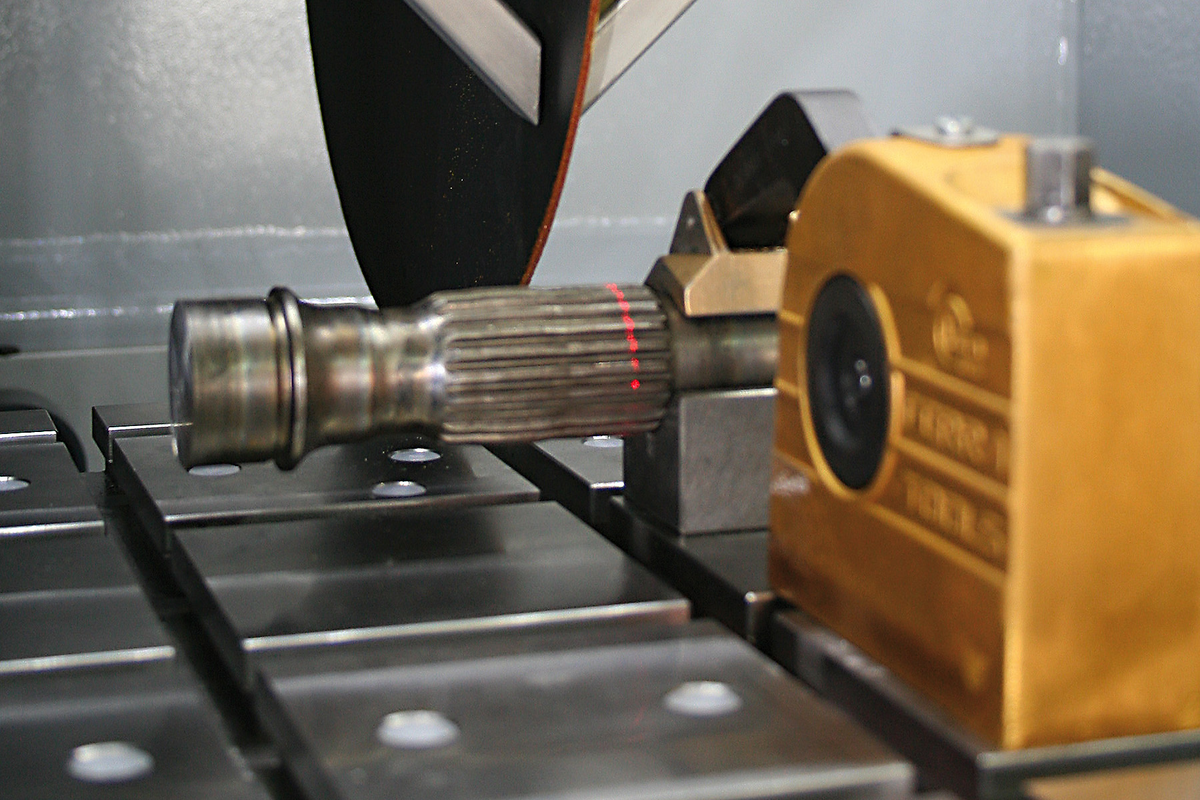

With the optional line laser the cutting line can be projected on the sample. This helps to define the exact cutting position.

Rotation Tool

The optional Rotation Tool features a vertical rotary feed parallel to the wheel with angle input controlled via software.

Electronic control

With the electronic control, all cutting parameters can be saved and loaded again. Maintenance tasks can also be stored in a customer-specific manner. During the automatic cutting process, all parameters such as feed speed, cutting force etc. can be modified.

Program cycle

By pressing the start button, the main motor and the feed are activated. The integrated cut detection ensures a constant cutting behavior, even when the cutting disk wears during sectioning. The feed speed is automatically decreased when an overload occurs during the cutting process.

Pulsed cutting

Especially when the material is thick and difficult to cut, the adjustable automatic pulsed-cut offers advantages such as gentle cutting and optimal cooling of the intersection area.

Cutting force dependent feed control

The feed speed automatically decreases when the cutting force reaches a pre-defined limit. This protects the machine, sample and clamping tools from overloading.

Recirculation cooling unit

• integrated, mobile
• multi-chamber filtration
• inlet sieve with filter bag (see consumables section)

Belt filter system 285

• Tank: 285 ltr.
• Filtering capacity: 100 ltr./min (referring emulsion)
• Pump: 100 ltr./min

Centrifugal Seperator

• removes coolant mist
• purifies the air and increases visibility
• exhaust power 425 m³/h
