Qtool 40 Series Quick clamping tools

Clamping jaws for Qtool 40 series

With the wide range of clamping jaws, the Qtools can be individually customized to the components to be cut:

Round components

• Can be clamped precisely and securely using the prismatic jaws or the bevelled jaw
• The geometry of the jaws creates a defined 3-point contact between the workpiece and the clamping device
• This prevents the components from slipping
• Round components can also be clamped vertically using the cross prism and cutted above the clamping device

Large components

• The high jaws offer a larger clamping surface for geometrically large components

Clamping the cut-off side of the component

• The cut-off side of the component can also be clamped using the slotted jaws
• This greatly reduces burr formation during cutting and avoids subsequent grinding of the burr before mounting in a mounting press

Clamping jaw, bevelled

• Jaw height: 25 мм
• Jaw width: 40 мм
• 5° bevelled clamping surface
• Clamping jaw for pressing down round material
• For round components up to Ø 50 мм
• Scope of delivery: 1 jaw (as counter jaw we recommend the clamping jaw standard (included in the scope of delivery Qtool)

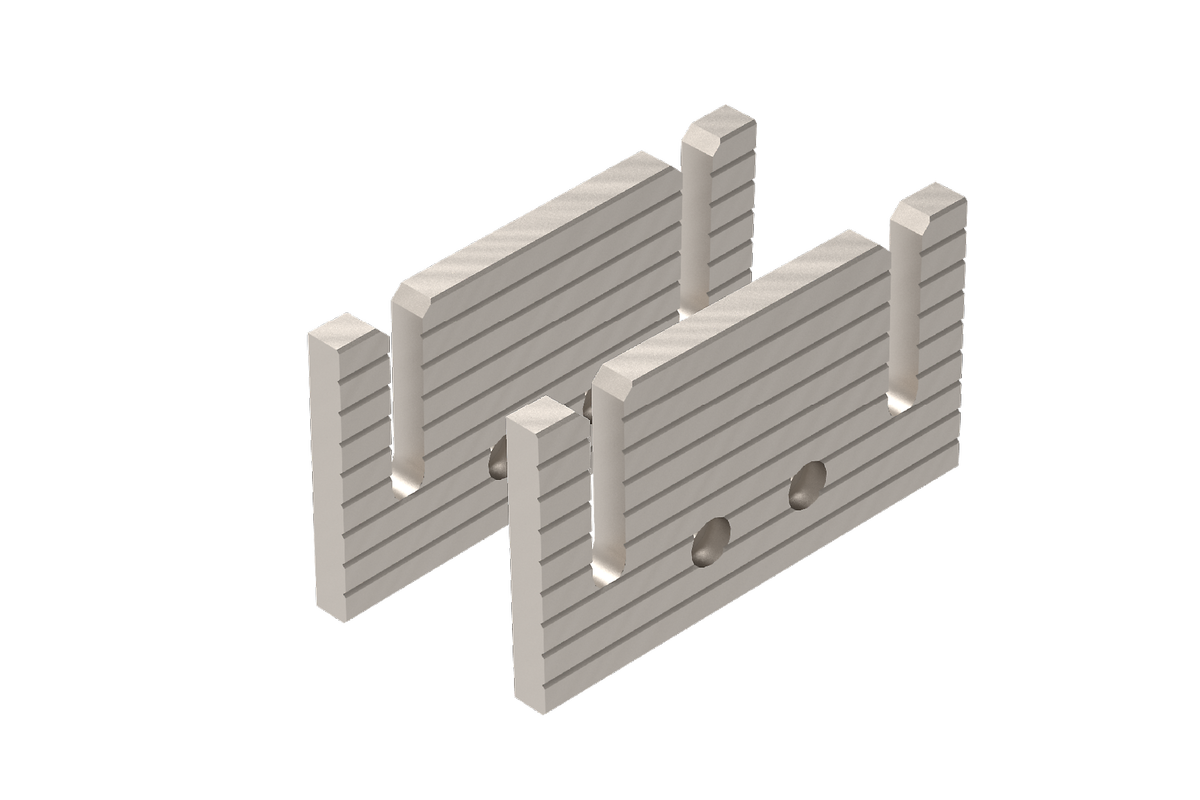

Clamping jaw, high slotted

• Jaw height: 45 мм
• Jaw width: 80 мм
• Separated component remains clamped even after cutting
• Scope of delivery: 2 Jaws

Clamping jaw, high, slotted, with prism

• Jaw height: 45 мм
• Jaw width: 80 мм
• Horizontal prism max. Ø 17 mm - for clamping round components (3 point support)
• Sample remains clamped even after cutting
• Scope of delivery: 2 jaws (1 slotted jaw high standard, 1 slotted jaw with prism)
